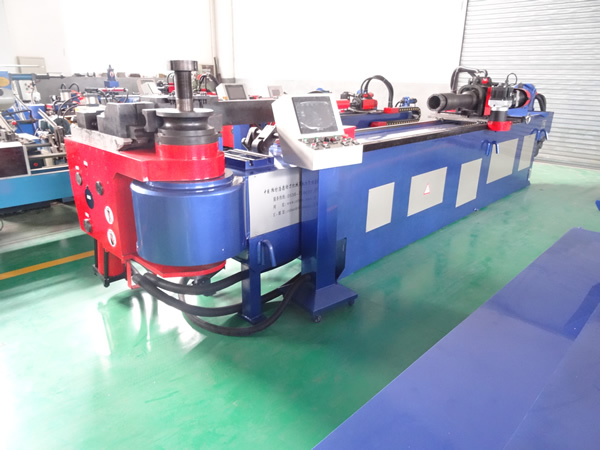

Characteristics of CNC pipe bender
Automatic identification of machine tool / workpiece dynamic characteristics → fast and good processing
Slow core pulling and trolley boosting → improving the appearance of bending angle
The whole process of Chinese (or English) operation tips + 15 inch true color display + touch screen → simple and clear operation
Graphic programming system: drawing / modifying the screen stereoscopic tube shape can make the processing program simple, fast and accurate
Rebound measurement → comparative measurement of batch pipe properties
Single step debugging function → observation of tube deformation process during mold trial production
Automatic drawing of mold drawing → obvious help for new product development
Comprehensive monitoring: Hydraulic / electrical / transmission system, motor phase loss / reversal, voltage, temperature, oil pressure, and automatic fault diagnosis
Password, key, man hour / quantity record for production management
